International connectors for boating without borders

by Martin Flory Group 1 Apr 2021 14:43 UTC

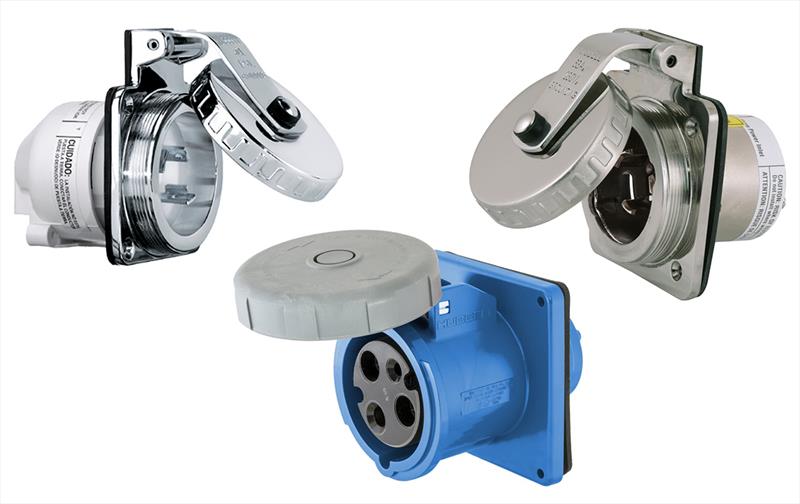

Hubbell Marine's wide range of internationally-rated products includes (top, L to R) 16A, 36A and (bottom) 60/ 63A inlets © Martin Flory Group

Shore power systems can vary greatly from one country to the next, posing challenges for cruising boats worldwide. Internationally-rated connectors from Hubbell Marine allow these vessels to enjoy compatibility abroad for safe and reliable power anywhere.

Hubbell offers CE-certified electrical shore power systems that are designed expressly for boats destined for European or international ports. Utilizing standard NEMA configurations, the 16A/230V and 32A/230V systems work with all 50-cycle shore power systems.

Inlets are available in a choice of marine-grade 316 stainless steel or white non-metallic styles. The cover is friction-tight to remain open while the cable set is engaged, then self-closes when not in use. Housings include a white Centrex cover and PBT base for weatherproof protection when closed.

Quality construction of these conventional-style Hubbell inlets includes full watertight sealing and nickel-plated brass contact blades for extreme corrosion resistance in harsh marine environments. The easy-to-wire, heat-resistant polycarbonate interior in 16A and 32A models is clear, enabling quick visual inspection. Cable sets round out these systems, with a female connection on one side and the other end blunt cut. They're available in 7.6m and 15.2m lengths for 16A and 32A configurations.

For 63A systems, Hubbell inlets incorporate a nickel-plated rear enclosure for corrosion protection, and a heat-resistant Thermoset contact carrier. Three screws lock the interior in place.

Hubbell Marine also offers a full line of dual-rated pin-and-sleeve devices to match both North American and international configurations. The inlets, receptacles, connector bodies and plugs are available in 16A/20A, 30A/32A and 60A/63A models for full interchangeability with other UL1686 C1 devices.

For more information contact Hubbell Marine Electrical Products Tel: +1-727-304-7638 or visit www.hubbell-marine.com

Related Articles

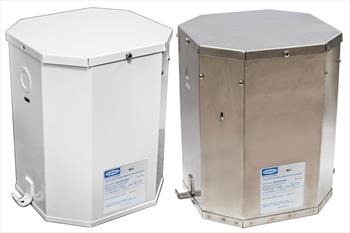

Hubbell isolation transformers increase safety
One of the great joys of boating is the freedom to explore distant shores One of the great joys of boating is the freedom to explore distant shores. But the availability of clean, safe dockside power at remote ports of call can never be guaranteed. Posted on 22 Sep 2023 Advanced Y Adapter aids safe dockside connections

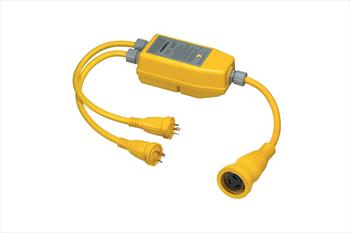

Allowing owners to easily correct 30A and 50A connection mismatches Cruising boaters visiting new destinations can face challenges when the marina's shorepower system differs from that of the boat. Posted on 14 Sep 2022 Y-Adapter gives cruisers electrical peace of mind
Enabling powering a 100A vessel from two 50A receptacles dockside Serious cruising boaters know that the most interesting ports of call are often served by smaller marinas, which may not offer amenities like 100A service. Posted on 7 May 2022 Hubbell Intelligent Y Adapter keeps the lights on
Automatically checks that both plugs are engaged and in separately-phased outlets Owners whose boats have 50A 125/250V electrical systems will spend the night in the dark if they cruise to a marina that only offers 30A 125V service. Posted on 26 Feb 2021 It's time to check shore power gear
Checking shore power equipment is an important maintenance task Periodically checking shore power equipment is an important maintenance task, whether the boat owner is preparing for spring commissioning or organizing for fall storage. Posted on 30 Jan 2021 Intelligent Adapter corrects shore power mismatch

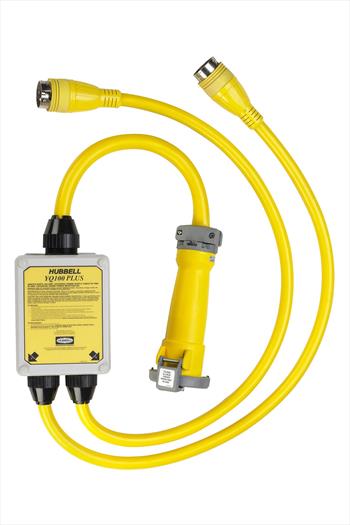

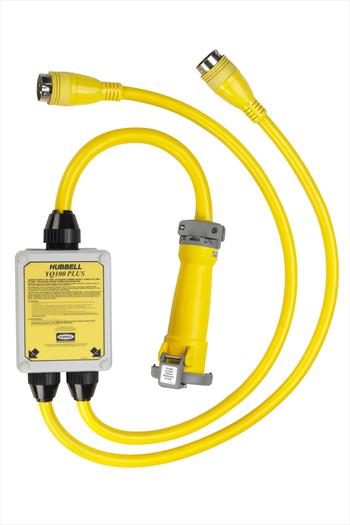

The YQ100PLUS adapter from Hubbell Marine offers a solution While a growing number of boats operate on 100A electrical systems, many marinas are still in the process of upgrading power pedestals to accommodate them. The YQ100PLUS adapter from Hubbell Marine offers a solution. Posted on 1 Apr 2020
